For maximum thermal protection, choose Sectional Thermal Door, our durable, energy-efficient sectional door. Our exclusive process fills 100% of the door's interior space with energy-saving polyurethane foam insulation to deliver exceptional R-values. This process also provides superior foam density for excellent structural integrity.
With a 16.4 R-value, this benchmark product provides proven Raynor reliability and durability to meet or exceed the requirements of daily use. This door is offered with the widest selection of quality features and options for the most common product applications.

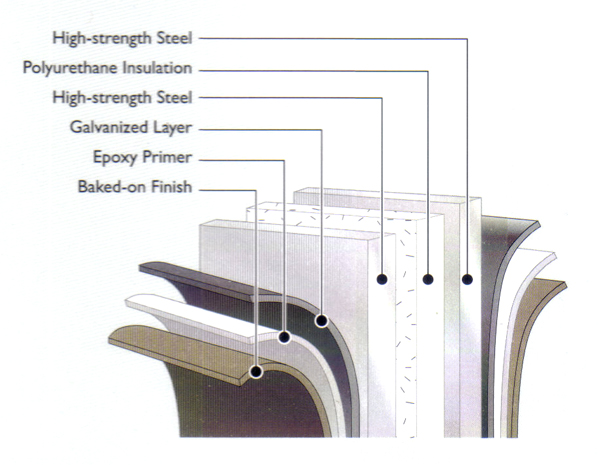

BUILT TOUGH. Rust-resistant galvanized steel is finished with a two-coat, baked-on paint process for long life. The superior thermal bond between steel and polyurethane foam is warranted against delamination for ten years.
Energy-saving polyurethane foam insulation is used to deliver exceptional R-values.
Rugged hardware and springs.
Your Thermal door comes packaged with the right combination of long-lasting hardware, track and springs to precisely match your door's size and application.
Reduced airflow.
Dual vinyl barriers dramatically reduce air infiltration. A true thermal break prevents heat loss and eliminates any metal-to-metal contact between surfaces.
Decreased energy costs.
Thermal doors help you reduce energy costs with a U-shaped, vinyl bottom weatherseal and sturdy aluminum retainer.
MODEL OPTIONS AND UPGRADE
Choice of windows.
Select either 24" x 8" (61cm x 20cm) oval (shown), 34" x 16" (86cm x 40cm) rectangle or aluminum full-view window sections. Choose from a variety of insulated glass, acrylic and polycarbonate styles to suit any application.
Locks.
In applications where control and access are important, choose from a variety of locking options to help keep your building secure. Locks come in both inside and outside variations.
Customized track and hardware systems.
Track systems are supplied to fit special clearances, inclines or contour applications. Hardware and track systems can be designed to fit any need.* Additional trussing is available for special windloading applications.
Pedestrian doors.
Pedestrian doors are designed for convenient entry and to help minimize energy loss.*
Removable center posts.
Carry-away and swing-up options are available for extra-wide openings. Ideal for agricultural or airplane hangar applications.
Carbon monoxide vent.
Allows you to channel fumes to the outside when door is closed. Available in a variety of sizes.
High-cycle counterbalance systems.
For reliable operation in high-traffic areas, choose high-cycle torsion springs with 25,000, 50,000 or 100,000-cycle life.* For reduced maintenance and ultra-smooth operation in heavy-use applications, choose a weight counterbalance system.
* Some options may be limited to door size or model.
